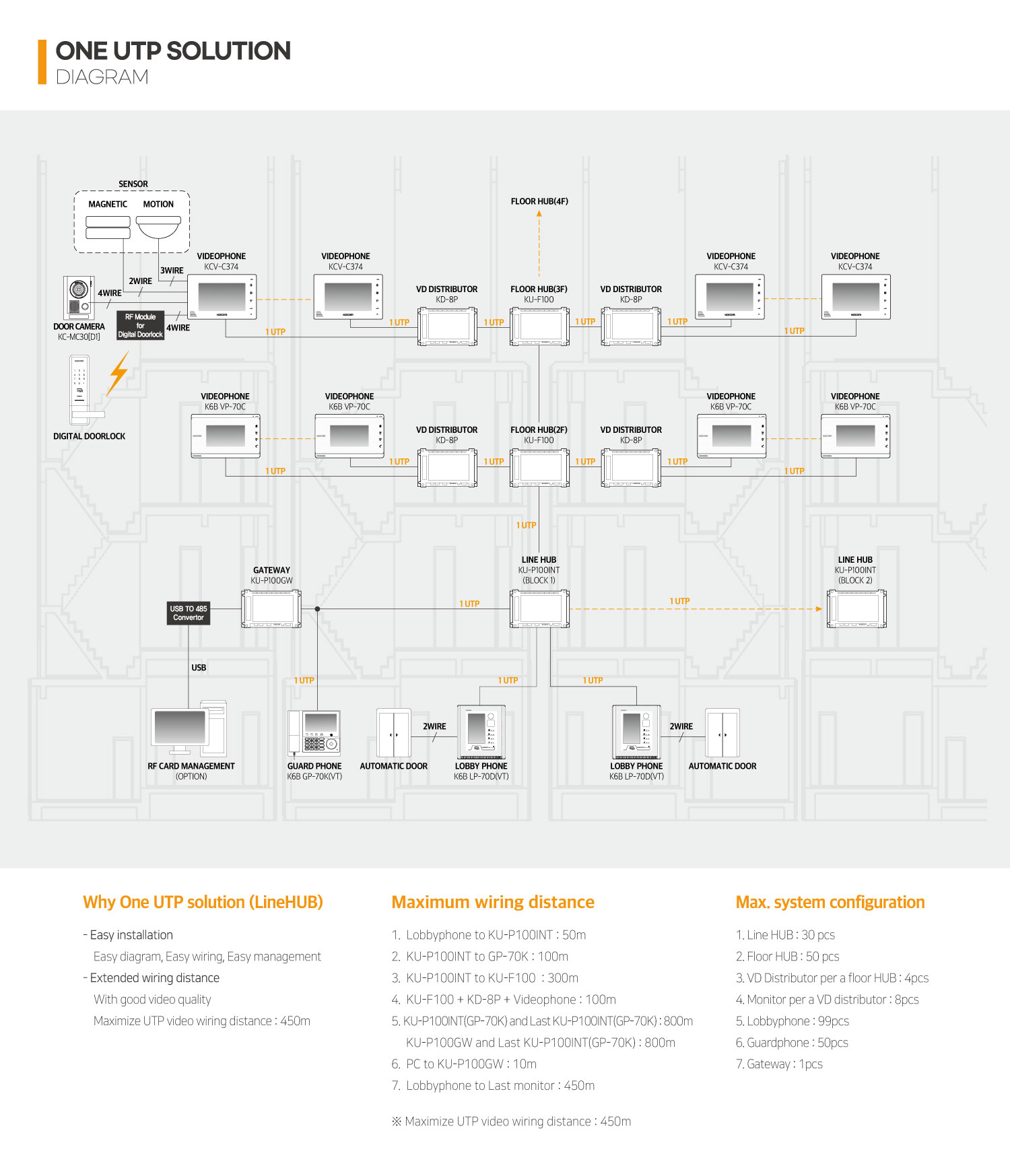

One UTP Solution
Videophone
- 6 Wire System(Interphone)
- 4 Wire Apartment System
- 4 Wire Video System for Villa
- 3+N Wire Audio System for Villa
- 2 Wire Non-polarity System
- 2 Wire Video System For Villa
- SUPPORT
- SUPPORT Download Contact us
- PR CENTER
- PR CENTER Notice e-PR
- ABOUT KOCOM
- ABOUT KOCOM Company Overview Business Areas Corporate Information Location

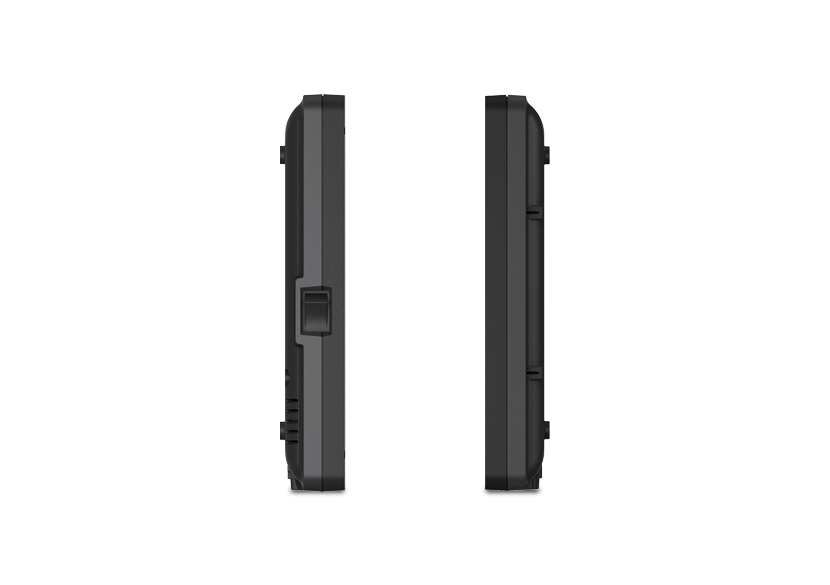

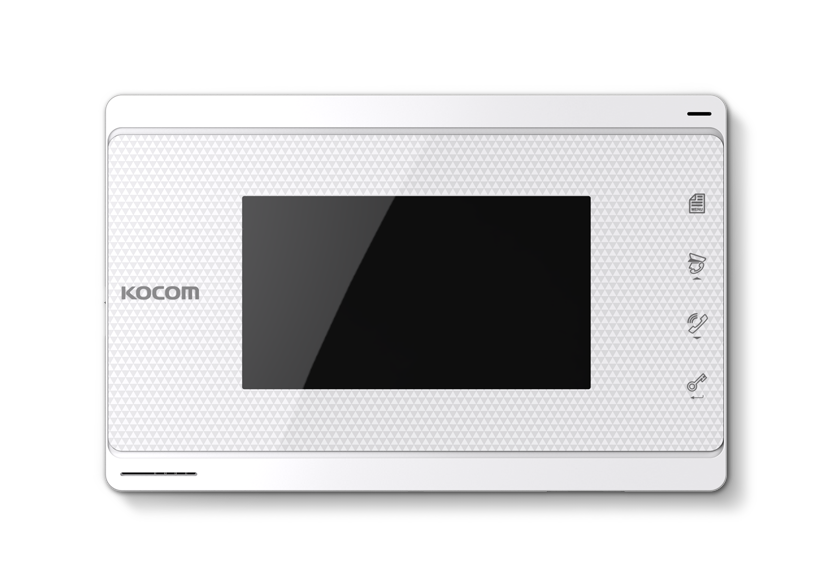

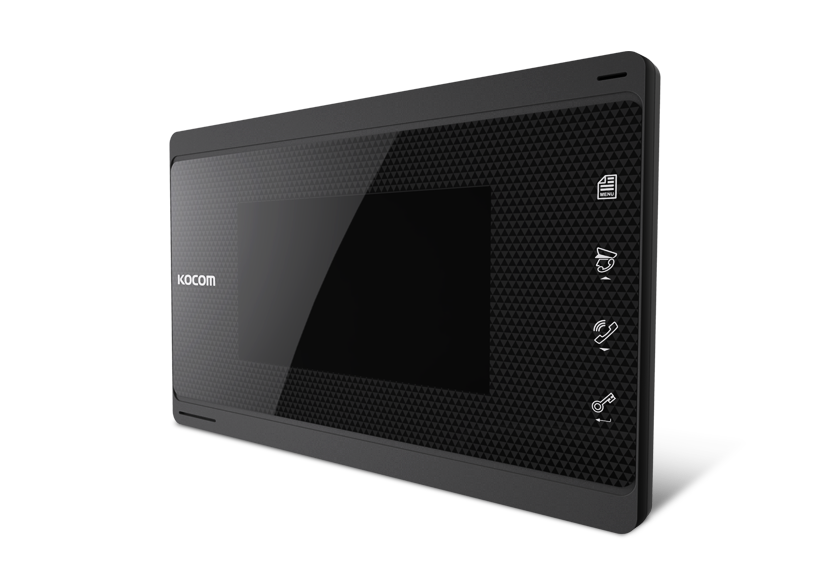

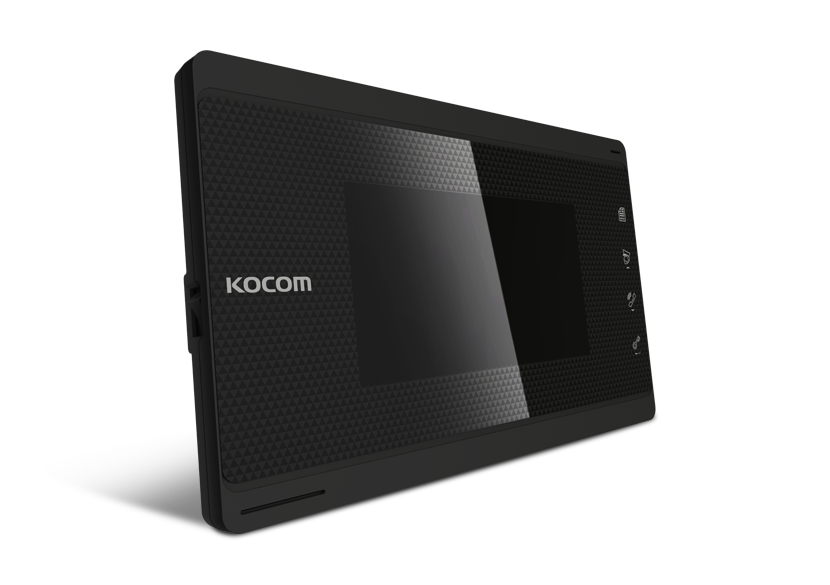

- Monitor K6B VP-70C
-
Main Functions
- - 7" Color digital LCD monitor
- Easy to operate using OSD menu and icon button
- Communication between Door camera, Guard phone and Lobby phone
- Internal communication between indoor units
- Security sensor connection (Motion, Magnetic) and alert available
- - 7" Color digital LCD monitor
Specifications
| LCD | 7" Digital LCD |
|---|---|
| Power | AC100V ~ 240V, 50Hz/60Hz |
| Power consumption | 1.5W(When stand-by), 13W(When operating) |
| Wiring | System line : 8 lines (polarity) Lobby video : 2 wire (UTP/Coaxial) Door camera : 4 wire |
| Mount Type | Surface mount |
| Operating Temperature | 0℃ ~ +40℃ |
| Dimesion | 271 (W) x 173 (H) x 26 (D)mm |
